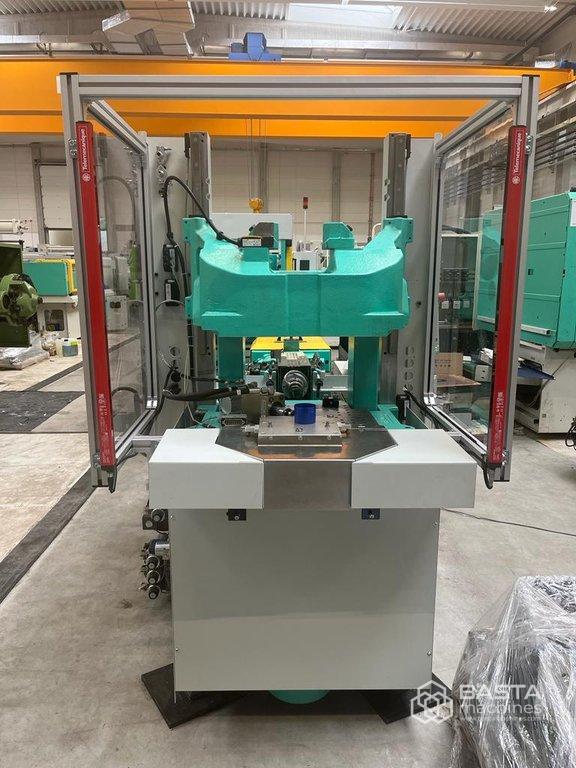

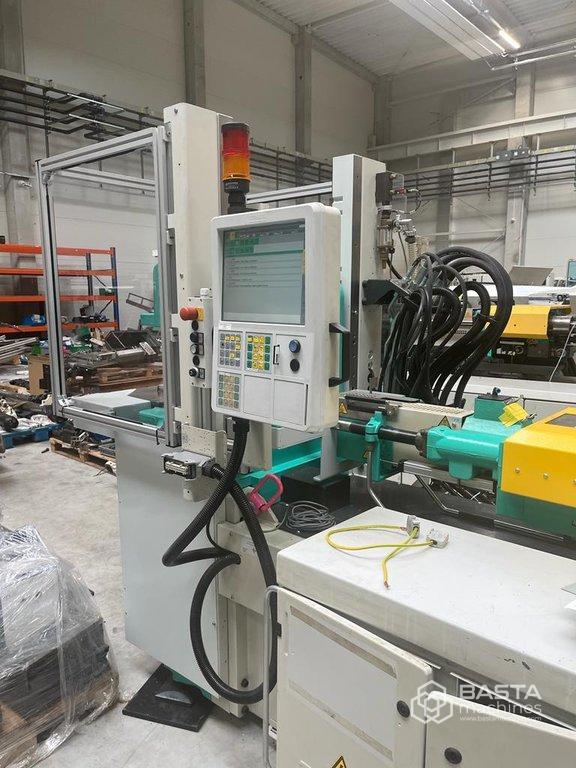

2012 Arburg 375V 500-100 (vertical)

Clamping Unit

• Clamping Force: 50 Ton

• Opening Force (max): 40 kN/mm

• Mould Height (fixed/variable min): 200 mm

• Platen Daylight (fixed/variable max): 450-550 mm

• Weight of Movable Mould Half (max): 230 kg

• Ejector Force/Stroke (max): 30 kN / 70 mm

Injection Unit (100)

• Screw Diameter: 20 mm

• Effective Screw Length (L/D): 25

• Injection Volume: 31 cm³

• Shot Weight: 29 g (PS)

Machine Specifications

• Weight of Machine: 3,049 kg

• Transport Dimensions: 2.7 m x 1.5 m x 2.2 m

• Transport Weight: 3.6 tons

Safety

• Barrier: Optical barrier only (no mechanical barrier).

2x hydraulic core puller
