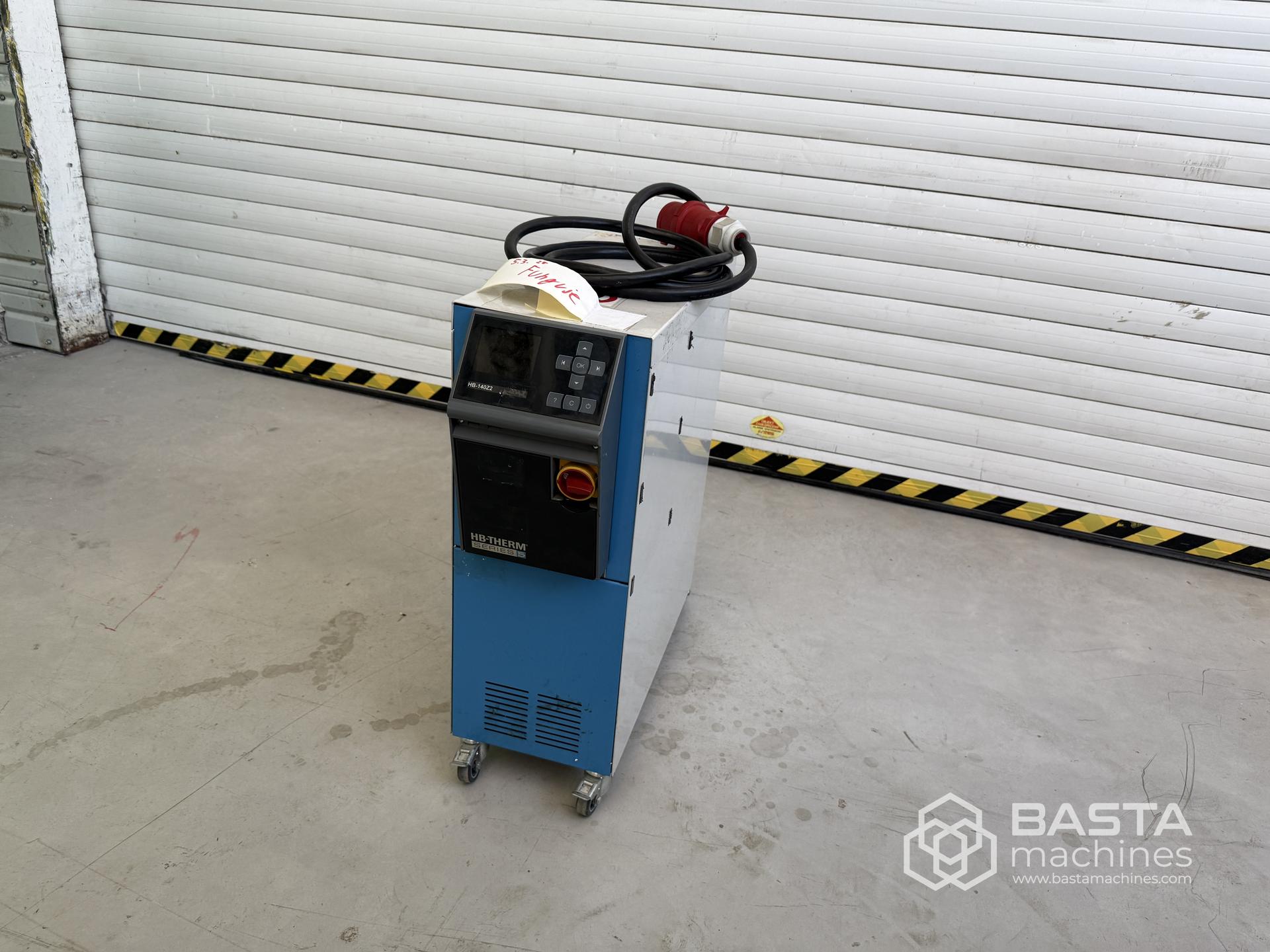

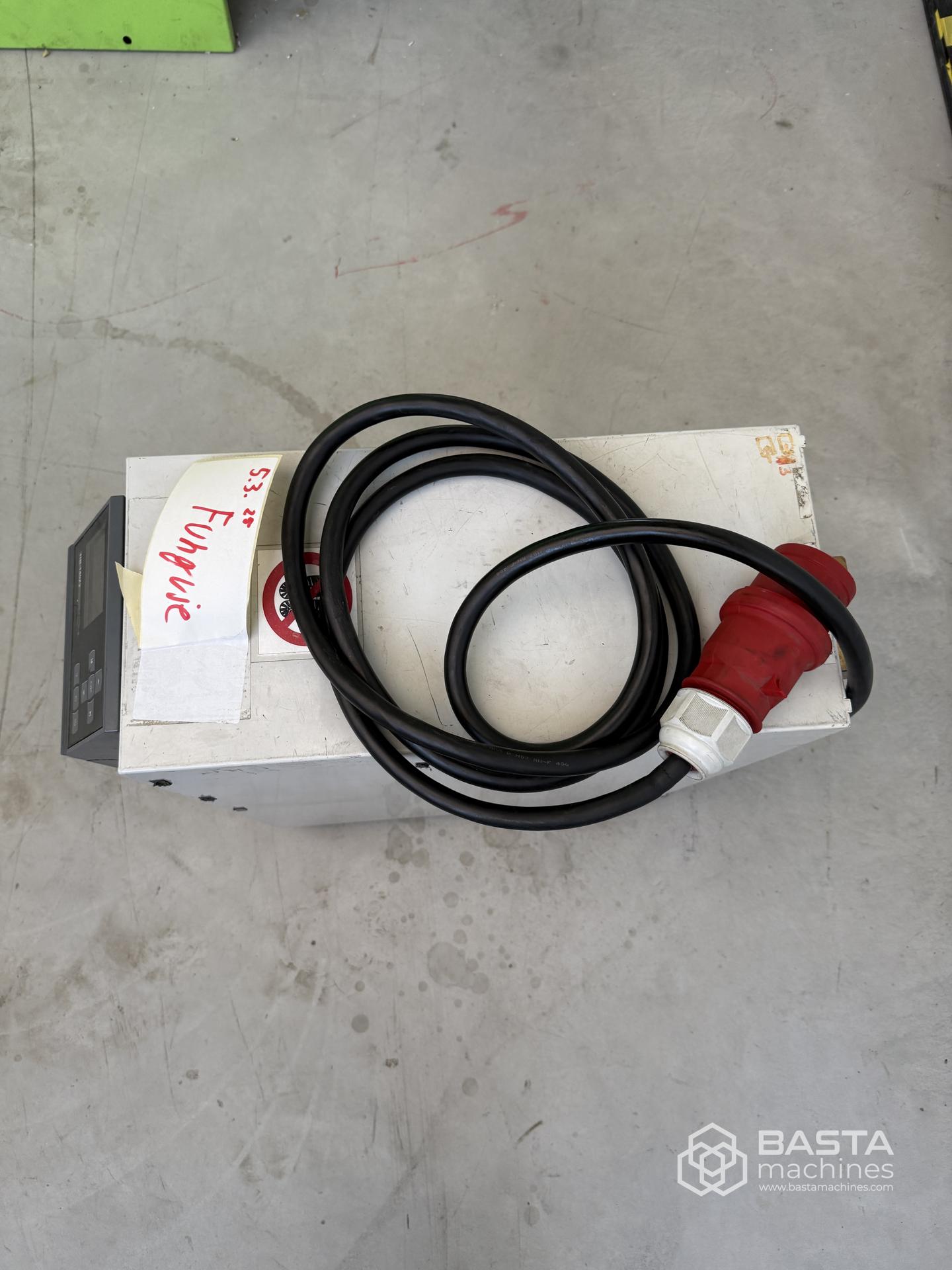

HB THERM 140 Z 2 (2010)

HB THERM 140 Z 2 (2010)

Measurement range 0–400 °C

Resolution 0.1 °C

Regulation accuracy ±0.1 K

Tolerance ±0.8 K

Flow measurement

Measuring range 0.4–40 l/min

Resolution 0.1 l/min

Regulation accuracy ±0.1 l/min

Tolerance ±(5% of measured value + 0.1 L/min)

Pressure measurement

Value Unit

Measuring range 0–20 bar

Resolution 0.1 bar

Tolerance ±5% of final value

Technical data O8360-CS 2023-08 25 3.2 Emission value unit

Permanent sound pressure level <70 dB(A)

Surface temperature (back side of the device) >55 °C 3.3

Operating conditions

Temperature range 5–40 °C Relative humidity* 35–85 % RH

Minimum free space (→ picture) A ** 10 mm B 50 mm C 150 mm D 50 mm E 70 mm
