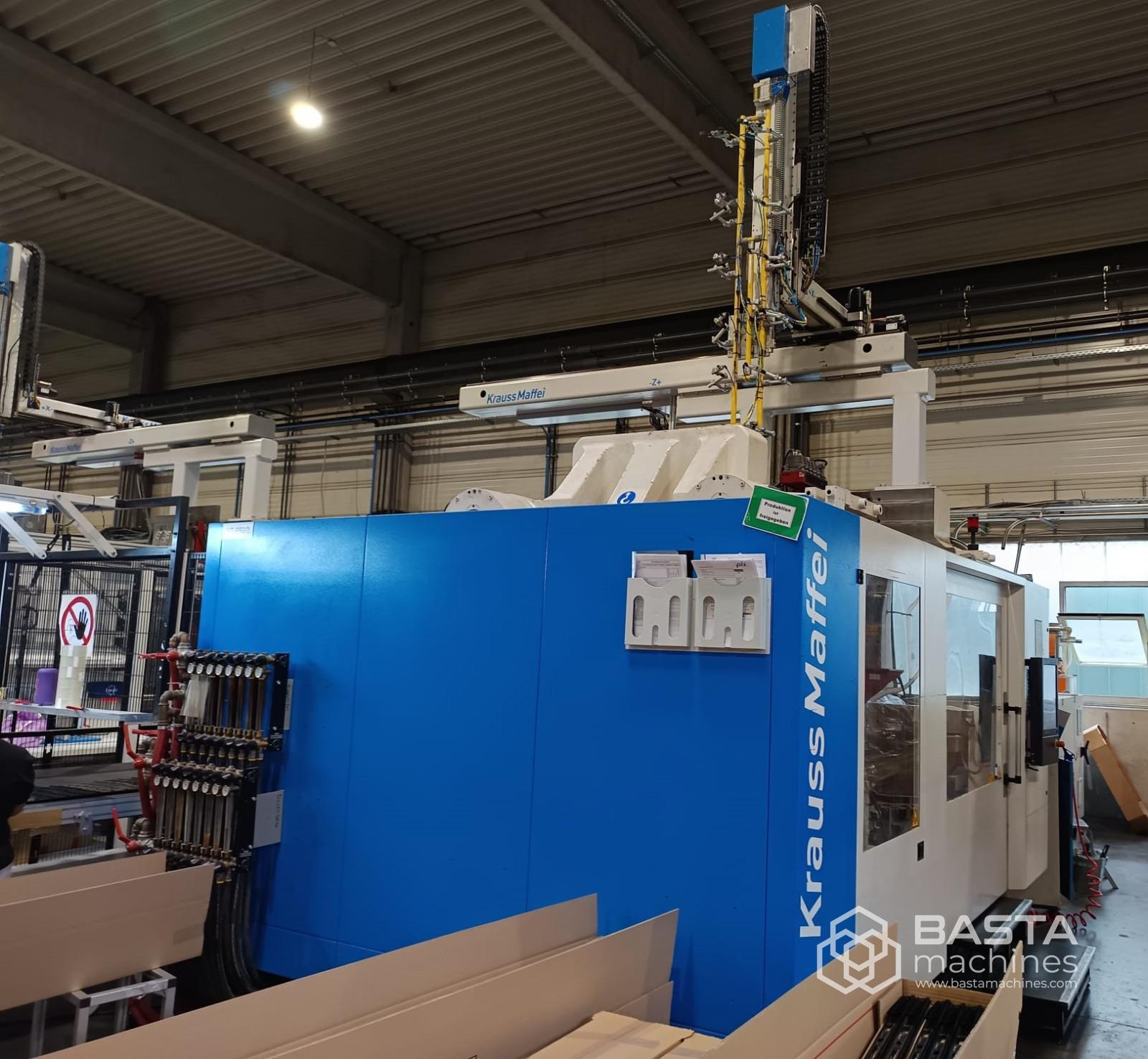

Krauss Maffei 650 GX SP 3000 (2015)

Krauss Maffei 650 GX SP 3000 (2015)

Clamping force: 650 t

Screw diameter: 80 mm

Shot weight: 1170 g

Distance between tie bars V: 960 mm

Distance between tie bars H: 1110 mm

Shot volume: 1284 cm3

Type: Horizontal

Drive: Hydraulic

Clamping force: 650 t

Screw diameter: 80 mm

Shot weight: 1170 g

Distance between tie bars V: 960 mm

Distance between tie bars H: 1110 mm

Shot volume: 1284 cm3

Type: Horizontal

Drive: Hydraulic

Injection Moulding Machine – KM 650 GX

Injection Unit: SP 3000

Screw Diameter: 80 mm

Clamping Unit

Clamping Force: 6500 kN

Tool Holding Force: 455 kN

Platen Dimensions (H × V): 1540 × 1440 mm

Space Between Tie Bars (H × V): 1110 × 960 mm

Max. Mold Height: 1450 mm

Mold Installation Height (Min./Max.): 450 / 1000 mm

Opening Stroke: 1000 mm

Ejector Stroke: 250 mm

Ejector Force (Forward/Return): 95 / 49 kN

Injection Unit

Screw Diameter: 80 mm

L/D Ratio: 21.3

Injection Pressure: 1538 bar

Shot Volume: 1284 cm³

Shot Weight (PS): 1170 g

Injection Rate: 141 cm³/s

Injection Speed: 133 mm/s

Injection Power: 60 kW

Plasticizing Rate (PS): 139 g/s

Heating Power Installed: 36 kW

Nozzle Retraction Force: 7 kN

Drive and Energy

Installed Pump Power: 90 kW

Dry Cycle Time (EUROMAP 6): 3.0777 s

Dry Cycle Time (KM Norm): 2.5555 s

Machine Dimensions and Weight

Dimensions (L × W × H): 8.03 × 2.88 × 2.45 m

Net Weight: 12000 kg

Max. Tool Weight: 11000 kg

Oil Tank Capacity: 1180 l
